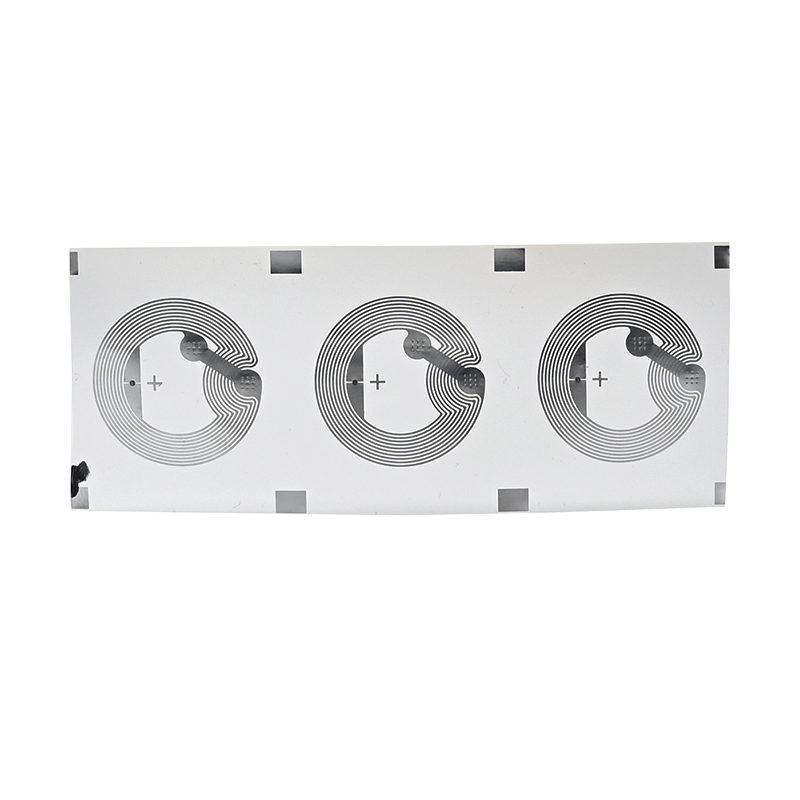

NFC ISO14443A NTAG213 Round RFID Label Antenna Size φ22mm

NFC ISO14443A NTAG213 Round RFID Label Antenna Size φ22mm

Manufacturer Location: Shenzhen, China

NFC Stickers are NFC Labels with NFC Chip embedded in paper, PET or other materials. Different sizes and shapes available. We can custom print NFC Stickers with your Logo, Graphics, or serial number.

Need Help? Please contact us today for a free consultation and pricing.

* Please contact us directly for custom order or order in the large quantities.

Need an urgent quote?

7*24Hrs Service Time: WhatsApp: +86 13620951710

Product parameter

Product Name	NTAG213 Round Label
Antenna Size	φ22MM
Frequency	13.56MHZ
Protocol	ISO/IEC 14443A 1-3, NFC Forum T2T
Chip	NTAG213, NTAG215, NTAG216, NTAG424DNA
User Memory	NTAG 213(144Byte), NTAG 215(504Byte), NTAG 216(888Byte)
IC Life	100,000 programing cycles/50 years data retention
Operating Type	Passive with high reading & write sensitivity
Label Size	Customized Size (at least 3 mm larger than the antenna size）
Antenna Material	PET base + Aluminum foil antenna
Surface Material	Coated Paper, Brightening PVC, Brightening PET, Transparent PET, Transparent PVC, Carbon Paper, PP synthetic Paper, PET Synthetic Paper, Thermal Paper, Fragile Paper
Backing Paper Material	Glassine release paper
Operating Limits	-70℃/ 20%~90% RH.
Storage Limits:	-20~50℃ / 20%~90% RH(Without condensation).

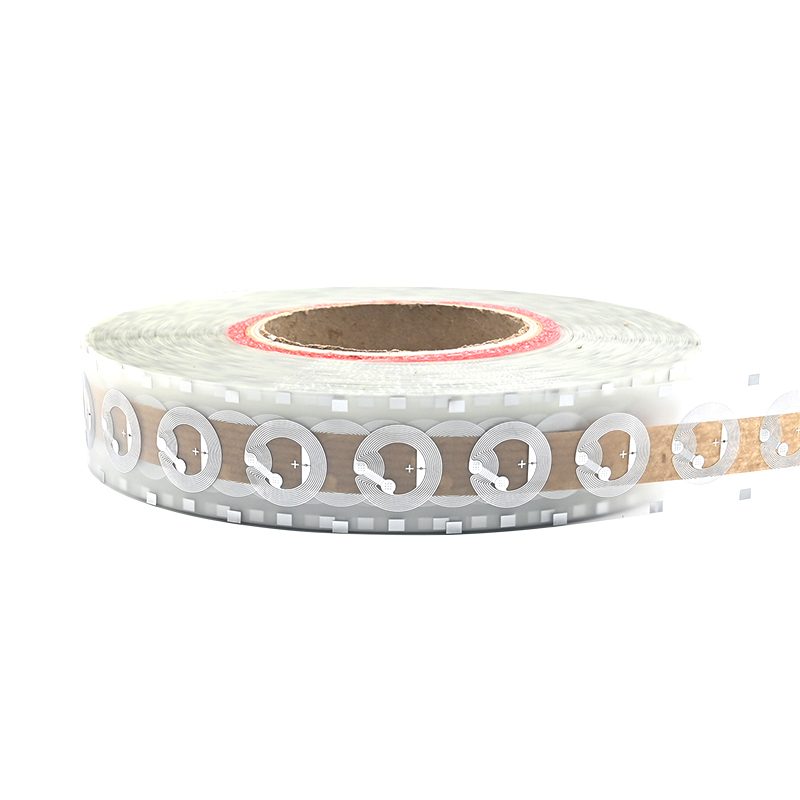

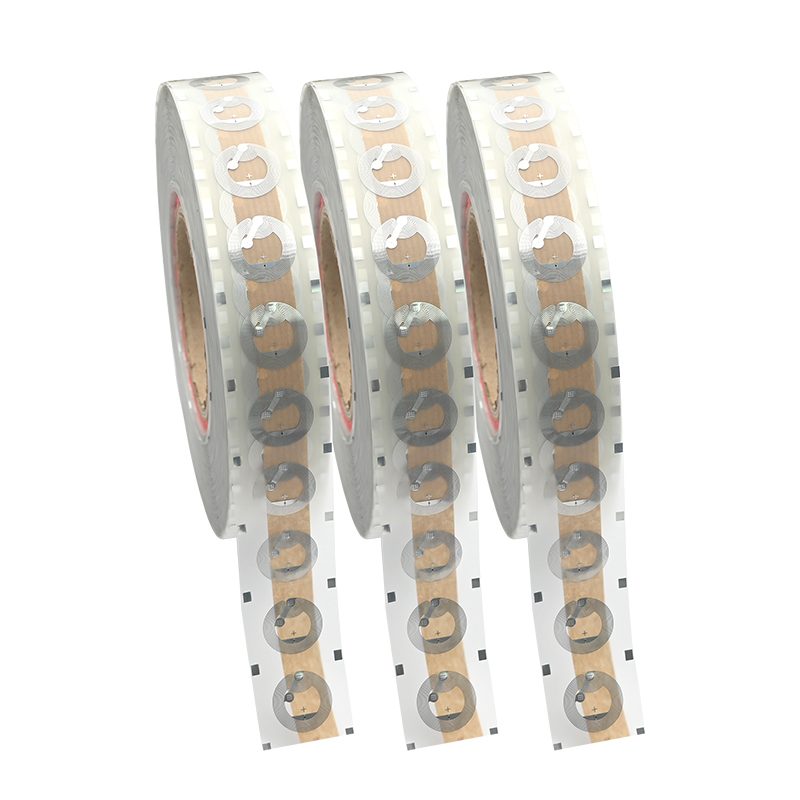

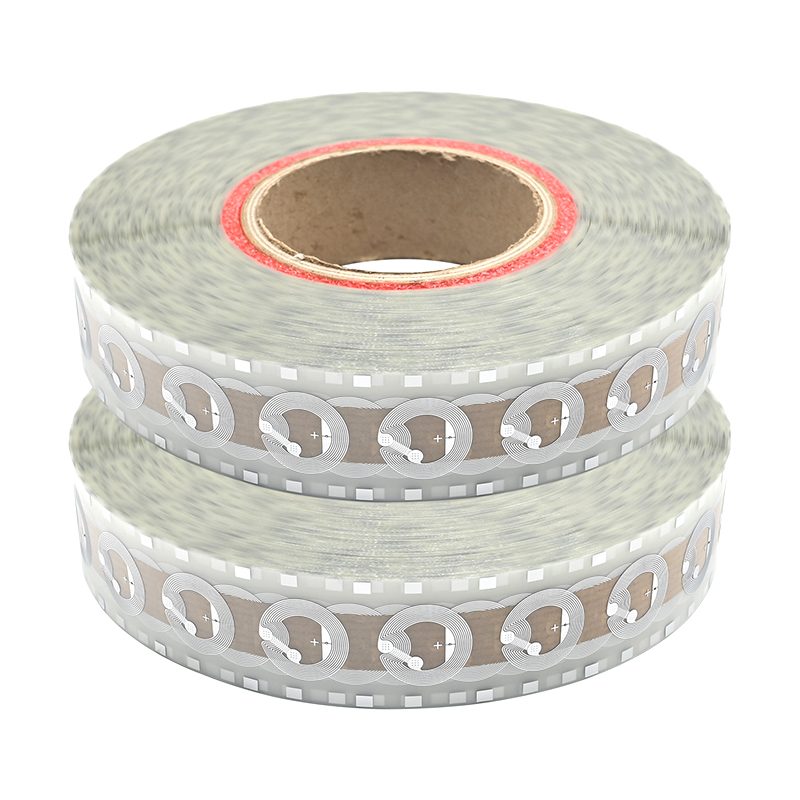

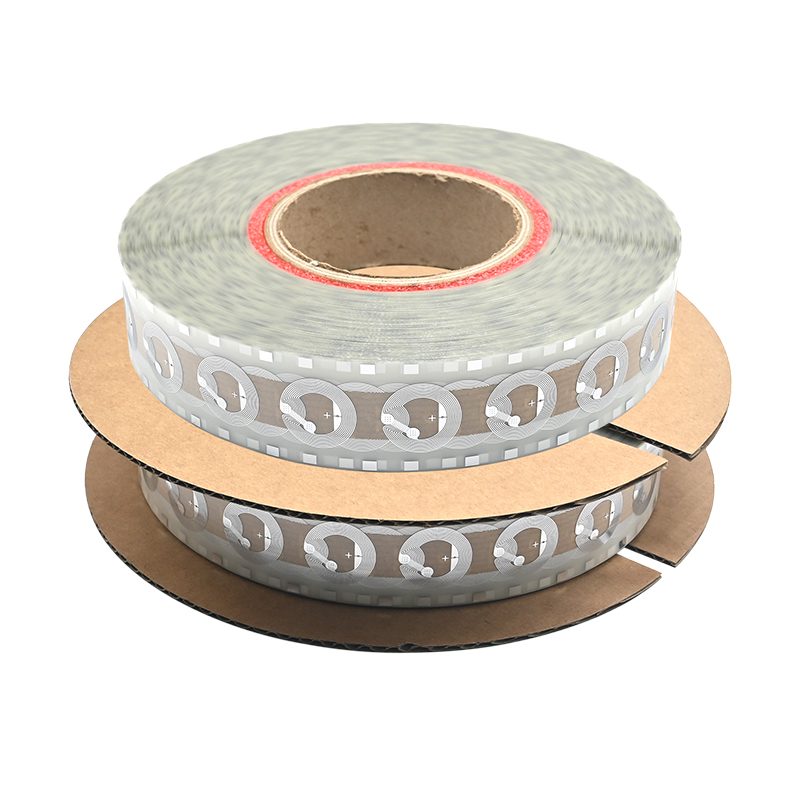

Inlay Format	In roll
Delivery Format	2000-5000pcs/roll, 4 rolls /carton
Sample Charge	We can offer free sample that is in stock,but the freight need to be paid by you.
Payment	We accept T/T,Paypal,Escrow,Western Union,trade assurance etc.

RFID Tag/Lable Application

Wine	Warehousing	Tickets	Retail
Healthcare	Pharmaceutical	Retail	Pallet Identification
Package Tracking	Logistics	Liquid Tube	Library
Jewellery	Apparel	Automobile Tracking	Cosmetics
Cold Chain Management	Cables	Automotive Tire Tagging	Asset Tracking
